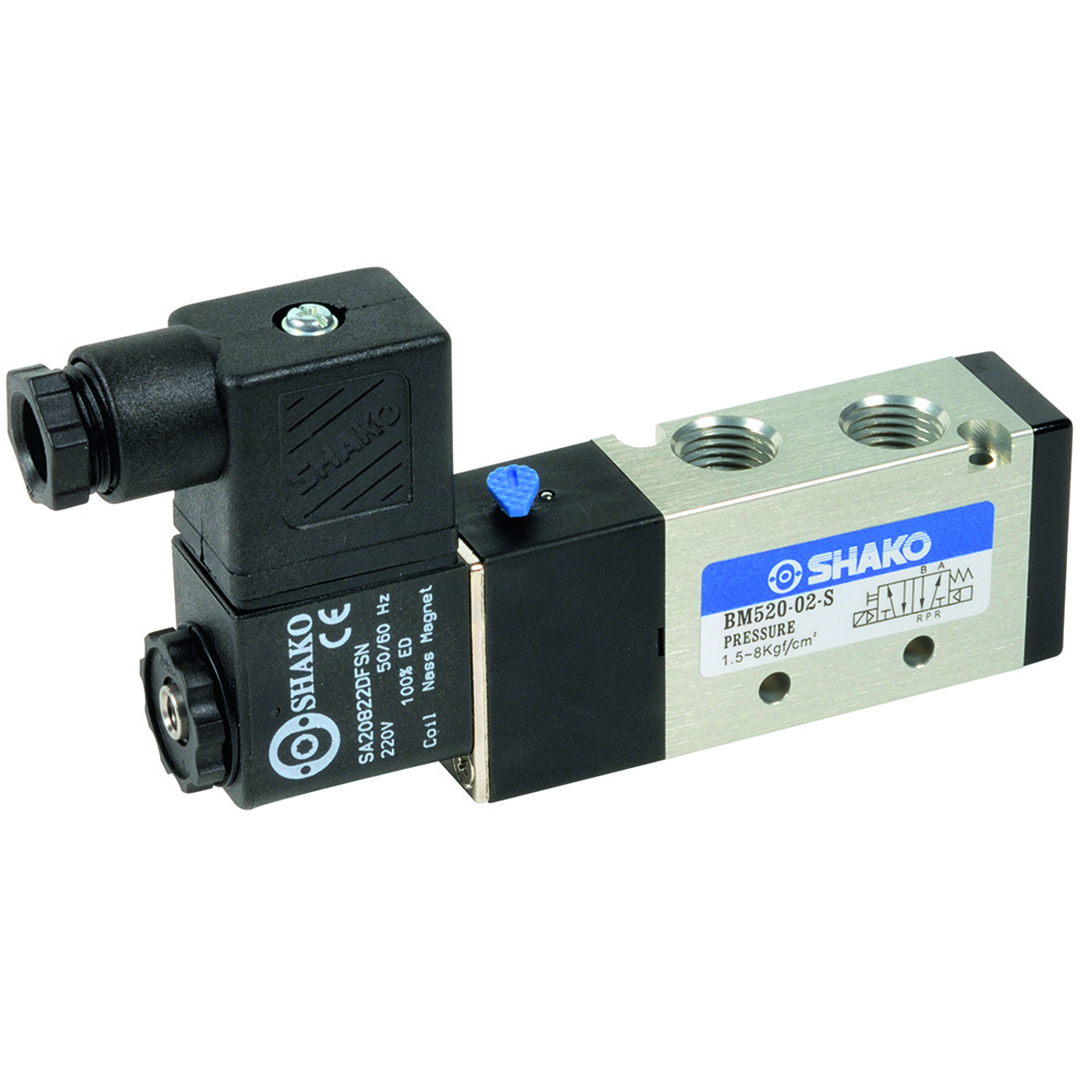

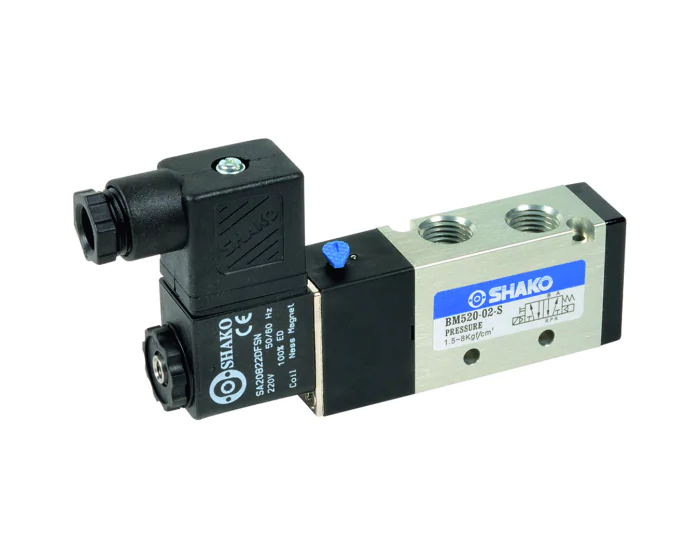

The BM 520 5/2 monostable solenoid valve is designed to control pneumatic knife gate valves. Anodised aluminium body, TS: -10 / +60°C.
Flanged ball valve with floating ball Body in stainless steel 1.4408 Ball in stainless steel A 351 Gr. CF8M Ball for regulation with V-port 60° Seats in Stansit Max. working pressure: 40 bar (DN 15 to DN 50), 16 bar (DN 65 to DN 200) Face to face: EN558-1 series 27 Connection: flanged PN 16/40 (DN 15 to DN 50), PN 16 (DN 65 to DN 200) ISO mounting flange Fire safe according to ISO 10497 With pneumatic actuator spring return type ASO, spring to open, air to close Equipped with: Electropneumatic positioner, single acting type 6DR-5110 - HART protocol - incl. VDI/VDE 90° mounting set
| Specification | Value |
|---|---|
| Connector | T22 |
| Fluid | Air |
| Protection index (IP) | IP 65 |
| Body material | Aluminium |
| Pilot (NAMUR) | Shako |
| PS (bar) | 10 |
| Voltage | 230 V AC |
| TS max (°C) | 60 |
| TS min (°C) | -10 |
| Solenoid pilot valve type | monostable |
| Solenoid pilot valve ways | 5/2 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Aluminium 230 V AC | 042490 | S1001596 |
€29.19
(excl. btw)
|
add to cart |
| Aluminium 24 V AC | 042491 | S1001597 |
€29.19
(excl. btw)
|
add to cart |
| Aluminium 24 V DC | 042492 | S1001598 |
€29.19
(excl. btw)
|
add to cart |
